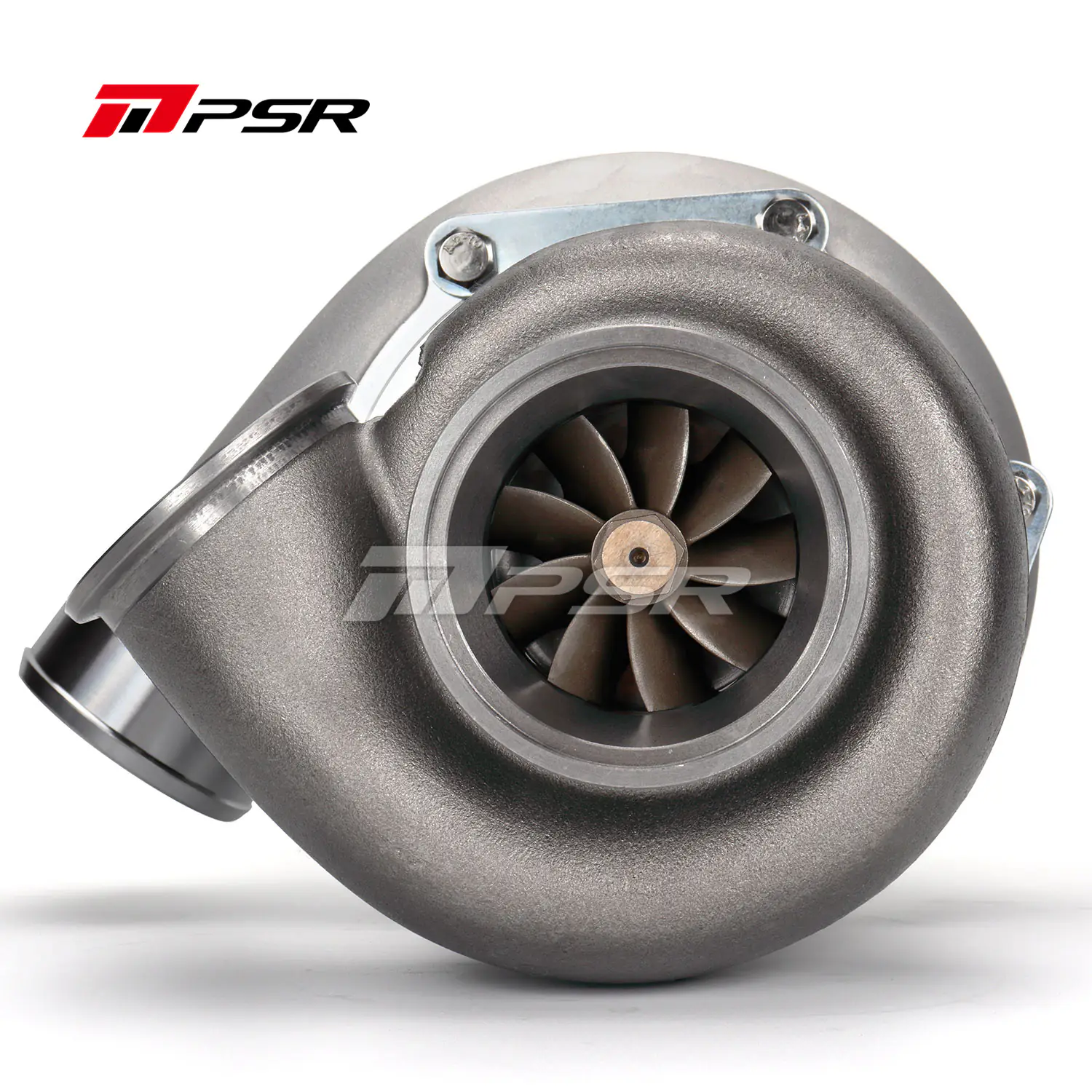

Pulsar GTX3584R GEN3 Ball Bearing Turbo

From £684.00 Inc. VAT

Finance Calculator

A loan from Omni Capital can help you spread the cost of your purchase with fixed monthly payments. Please select a deposit amount and loan term below to see a representative example of your purchase using finance.

Deposit Amount

Choose a deposit amount that suits you, ranging from 20% (£137) to 50% (£342) of the purchase amount.

-
£
+

Loan Terms

Choose from the available loan products the term and APR that best suits your needs. A longer term reduces monthly payment amount but may increase the amount of interest paid.

Term Length
First Instalment:
Monthly Instalment:
Omni Powered by Autify Digital Ltd

Representative Example

Please note, Omni Capital Retail Finance is only available to UK residents over 18, subject to terms and conditions. To apply for finance, please add the product to your shopping cart, proceed through checkout and select "Pay by Finance" as your payment option. You will be redirected to the Omni Finance website, where you can complete the application form online. Your purchase will be delivered to the address provided on your application

You can get a min loan amount of £250.00 and max loan amount of £25,000.00.

Omni Finance Calculator

For product advice call 0345 009 5641 or Click Here to send an email

Description

Pulsar GTX3584R Gen 3 Please note, T51R mod housings require an additional 7 days handling. Recommended displacement 2.0 to 5.0 litres with power outputs up to 1000hp possible. Dual Ceramic Ball Bearing System 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology Inconel 713c 10 Blade Turbine Wheel for increased output Cover with integrated Speed Sensor Port 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings available. V-Band Flange kit(s) for the exhaust housing included Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP Larger Turbine Wheel for Higher flow Approx 60 to 100 hp increase over Gen 2 version. SPEC Compressor Wheel: 67*84mm Larger Turbine Wheel: 74*66mm Compressor Inlet: 4.0” Hose Compressor Outlet: 2.5” Hose Turbine Inlet: T3, T4, or 2.5″ V-Band Turbine Outlet: 3″ V-Band (3.55″OD) Oil Feed: -4 AN connect to the Oil Restrictor Oil Drain: Std T3 Flange Water In/Outlet: M14*1.5 It’s strongly recommended to run water cooling to aid reliability.

Additional information

Manufacturer

Turbo Model

GTX3584R GEN3

Turbo Bearing Type

Ball Bearing

Turbo Wastegate

External Wastegate

Compressor Housing

No compressor housing, Standard, T51R

Turbine Housing

0.82SS Dual V-BAND + T25 Adapter, Dual V-BAND 0.83 A/R, Dual V-BAND 1.01 A/R, No Turbine Housing, SS Dual V-BAND 0.82 A/R, SS Dual V-BAND 0.82 A/R + T3 Adapter, SS Dual V-BAND 1.03 A/R, SS Dual V-BAND 1.03 A/R + T25 Adapter, SS Dual V-BAND 1.03 A/R + T3 Adapter, T3 0.63 A/R V-BAND, T3 0.82 A/R V-BAND, T3 1.06 A/R V-BAND, T4 0.82 A/R V-BAND

SKUPULSAR-GTX3584R-GEN3
