6Boost Manifold Nissan RB30 / RB25 Garrett VBand G40 G42 ProMod 50mm

Description

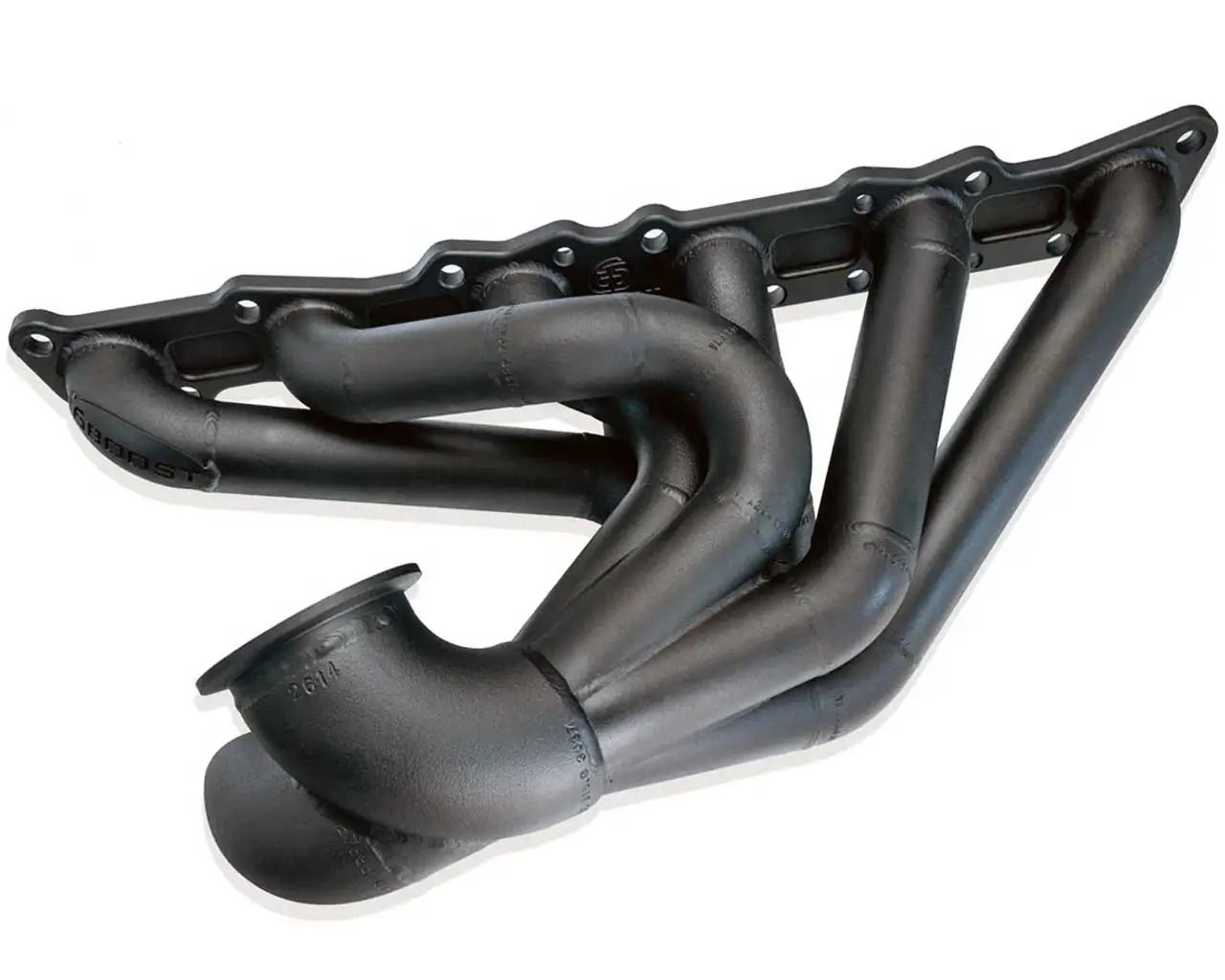

6Boost Nissan RB30 With RB25 Head – Garrett G40 / G42 ProMod 50mm Turbo Manifold

If you are upgrading your Nissan RB30 turbo setup and need a new RB30 G40 / G42 exhaust manifold with proven results look no further than 6Boost Manifolds! Inspired by Formula 1 technology 6Boost turbo manifolds are race and dyno proven to perform.

With many years of experience building high performance turbo setups and multiple world records backing the 6Boost name you can be assured that you’re not only getting one of the highest quality and best flowing Nissan RB30 exhaust manifolds on the market but one that will give you the reliability and performance gains you are looking for from a turbo exhaust manifold.

6Boost Manifolds – Built For Maximum Performance!

For almost two decades 6Boost Manifolds have been setting performance records while continuing to push the limits of performance. Backed up by real life results 6Boost have built a global reputation as one of the best flowing performance turbo manifolds for the Nissan RB30/25 engine.

6Boost manifolds are used on multiple record breaking cars and some of the fastest Nissan Skylines and Toyota Supras to ever race, including the two fastest Nissan Skyline R32 GTRs in the world proving 6Boost is a leader in performance manifold technology!

6Boost manifolds are specifically designed for your application and built around a unique “merge collector” design. This design means all pipes enter at the exact same angle and merge together pointing directly into the turbine. No pipes cross each other so gas flow is not disrupted and all exhaust gases are directed at the turbine entry with absolute maximum force, converting into quicker spool and better performance gains. By using this merge collector design 6Boost often see up to 400rpm faster spool time and anywhere up to 15% power gains. Peak power is also held up to 600rpm longer, even on highly tuned race engines.

Quality And Reliability

Each 6Boost Nissan RB30 exhaust manifold is individually hand crafted to the highest standard and built to last a lifetime. Made from 3.6mm thick mandrel bent steam pipe with 12mm laser cut flanges and tig welded seams.

6Boost manifolds are sand blasted inside and out for a smooth and even finish and then coated in high temperature exhaust enamel that is proven to withstand extremely high levels of heat. We are so confident in the quality of 6Boost manifolds they come with a lifetime warranty against cracking and manufacturing defects so you can be sure of getting a top class product.

All manifolds come complete with new head and manifold studs, nuts and high quality manifold to turbo gasket included in the price. We also stock head to manifold gaskets as an optional extra if you require one.

6Boost manifolds are available for most turbocharged Nissan, Mitsubishi and Toyota models in a selection of turbo flange options including T3, T3 twin scroll, T4 twin scroll, Garrett V-Band, Precision V-Band and Tial V-Band. We can also build manifolds suitable for Greddy 3 bolt flange and HKS T51R VBand. All manifolds are available with single or twin wastegate ports.

PLEASE NOTE: 50mm wastegate outlets support 45mm, 50mm and 60mm wastegates. Single wastegate manifolds require a minimum of 45mm external wastegate although 50mm is recommended. Wastegate sizes such as 38mm or 40mm will not provide correct boost control on a merge collector style manifold.

• Lifetime Warranty against cracking for reliability
• Steam pipe Construction for strength and durability
• High flow Merge Collector for maximum performance
• Supplied with manifold to head studs, turbo studs and turbo gasket for ease of fitment
