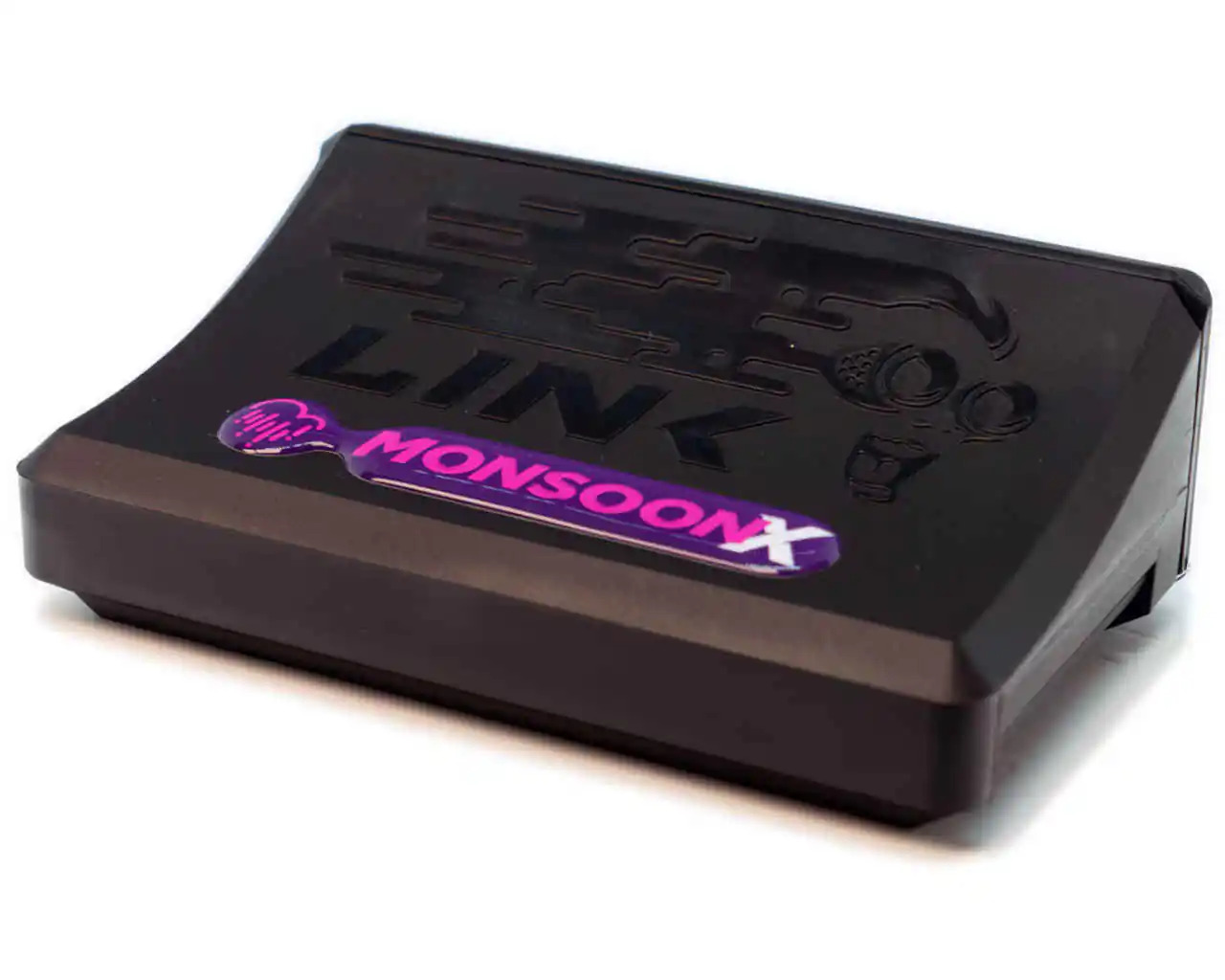

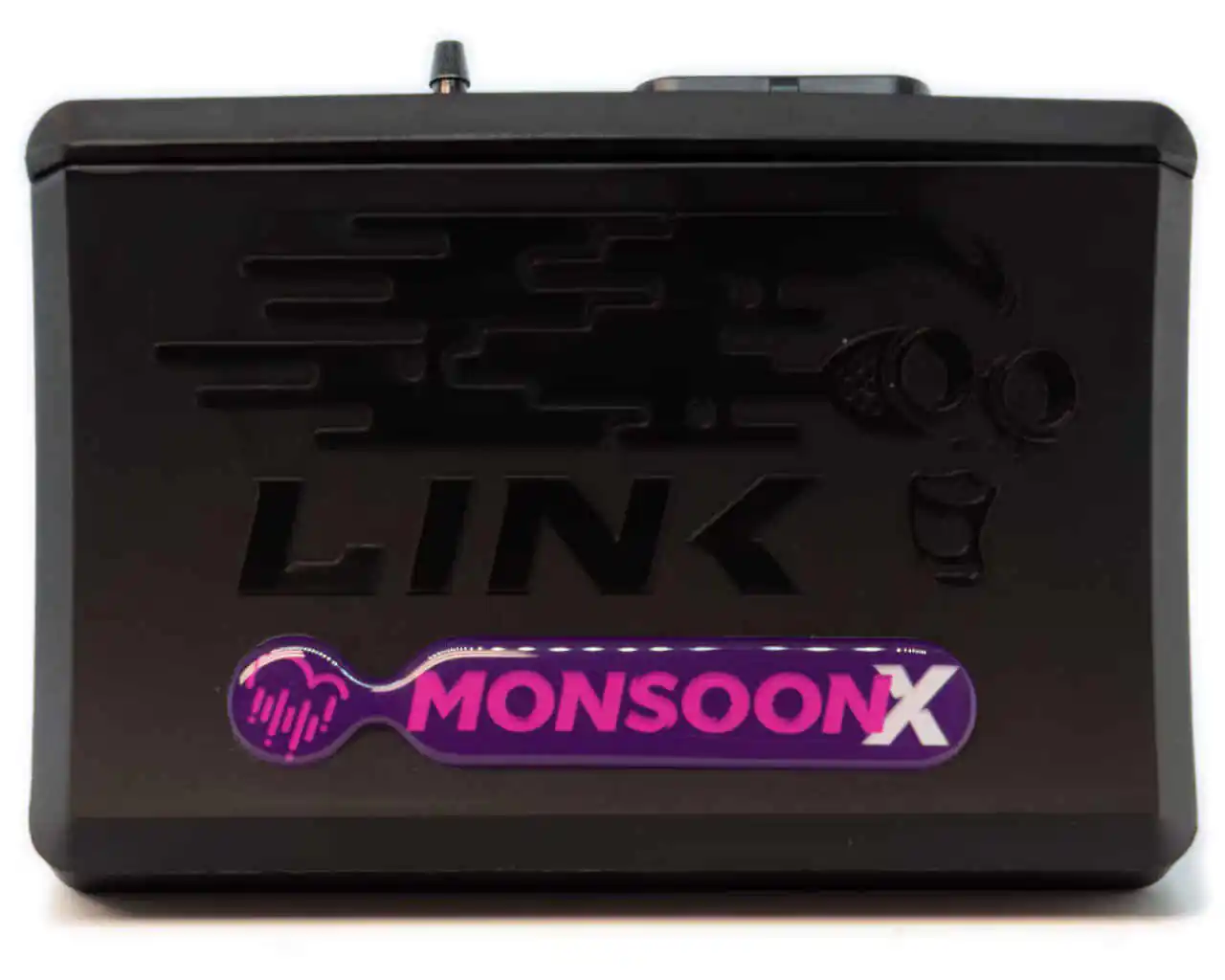

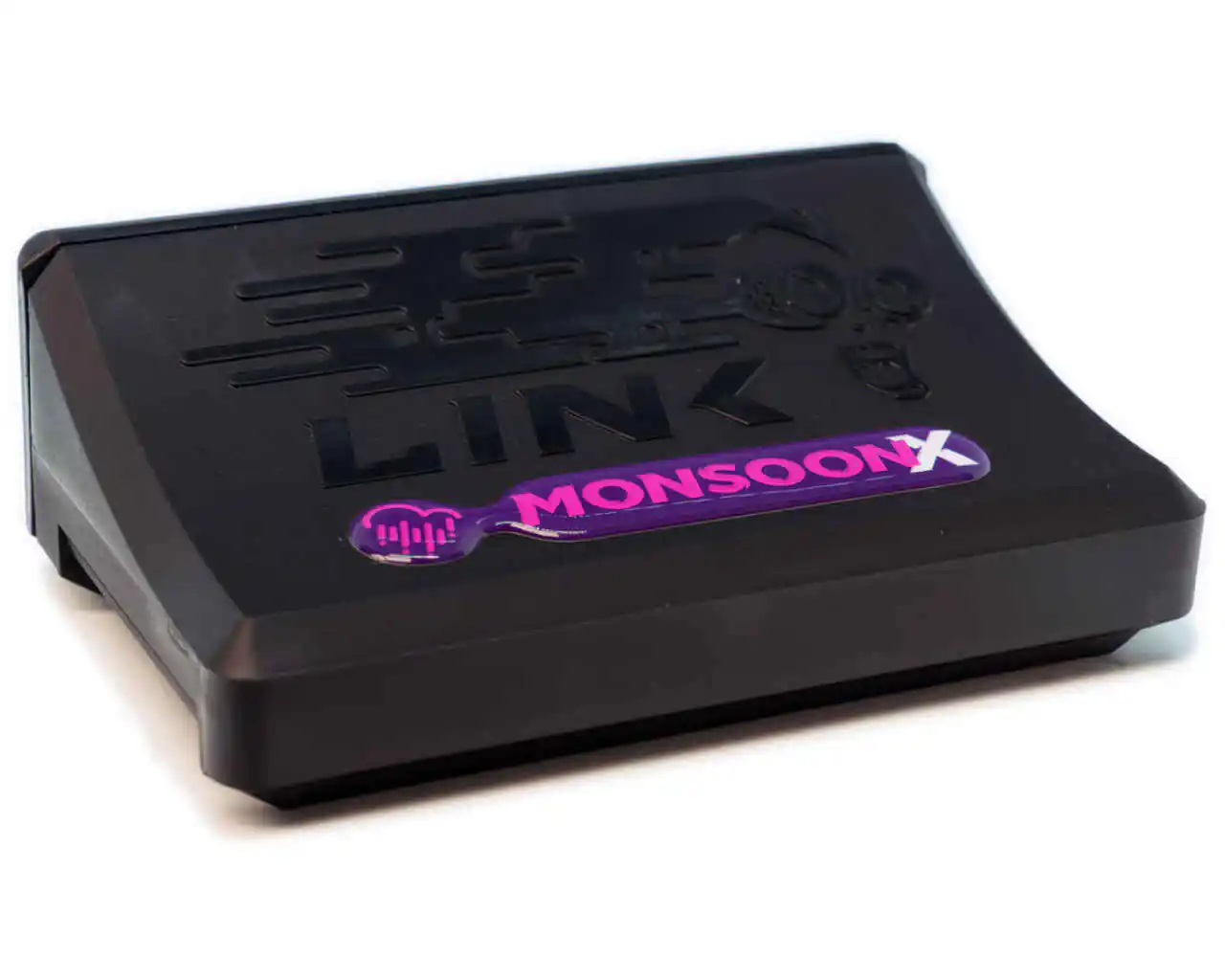

Link ECU Wire-In Link Monsoon G4X

£1,134.00 Inc. VAT £878.85 Inc. VAT

Available on back-order

  • Ships From Supplier 1-2 Days

Omni Finance Calculator

For product advice call 0345 009 5641 or Click Here to send an email

Description

The MonsoonX has been upgraded to provide 512 megabytes of data logging, meaning you can log much more data at a faster sample rate. Control loops are also more precise compared to its G4+ predecessor, along with advancements such as single precision floating point format fuel tables, better resolution within ignition timing and faster communications. These upgrades make the G4X Monsoon a true powerhouse in a small shell.

G4X features 512 megabytes of logging at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec.

With the MonsoonX you have all the tuning capabilities of the AtomX, but you can also choose to run some of the following features: Launch Control, Anti-lag, VVT Control and Closed Loop Boost Control. It also comes with a built in 4 bar or 7 bar MAP sensor further reducing installation cost. Now featuring Knock Control.

Note: The MonsoonX will run any of the above features, but it cannot run them all at once. The number of features you can run is dependent on how many of the limited Inputs and Outputs each feature needs.

The MonsoonX will control up to 2 rotors or 4 cylinders with sequential injection and direct spark. Or, it can be used for up to eight cylinders using batch fire.

This makes it ideal for naturally aspirated or turbocharged engines that just need a retune and one or two extra features, so you don’t need to jump up to one of our higher-level ECUs.

Requires A Loom

The MonsoonX RCU is ideal for:

  • 1-12 Cylinder Distributed
  • 2-8 Cylinder Wasted Spark
  • 1-4 Cylinder Direct Spark
  • Odd Fire Engines
  • 2-Stroke Engines
  • Configurable Firing Order
  • Configurable TDC Points (for odd fire)

Inputs

  • 4 x Digital inputs
  • 2 x Temperature inputs
  • 4 x Analog inputs
  • 2 x Trigger inputs
  • 1 x Knock Input (Shared with DI4)
  • 1 x Onboard 4 Bar MAP sensor
  • Outputs
  • 4 x Injector drives
  • 4 x Ignition drivers
  • 6 x Auxiliary outputs^
  • +5V Sensor power supply
  • ^unused ignition drives can be used as additional Aux outputs

Communications

  • 1x CAN bus
  • 1x USB tuning connection
  • Upgraded communications chip (four times faster than G4+)

Physical:

Dimensions: 95mm(L) x 130mm(W) x 45mm(H) (without loom)

Weight: 220 grams

Advanced features not found on the AtomX:

  • Antilag, rolling antilag and launch control.
  • Up to 2 fully variable closed loop VVT cams.

Misc:

512MB of logging memory

20 general purpose tables

Runs on PC Link software for G4X

The MonsoonX comes supplied with waterproof connectors, a mounting bracket and a USB tuning cable. “A Loom” to be purchased separately.

Additional information

Manufacturer

Product Type

ECU

ECU Type

Wire-In ECU Systems

SKU127-4000
